JBC PSS Support - Multiaxis Rotative Support for PCBs (up to 13 x 13 cm)
Multiaxis Rotative for PCBs up to 13 x 13 cm / 5 x 5 in
The JBC PSS is a highly versatile support designed to secure and position PCBs for efficient soldering and desoldering tasks, whether or not preheaters are used. This rotary support is fully compatible with JBC’s PHSE Preheater, enhancing its functionality.
The PSS enables quick and precise PCB adjustments, ensuring consistent and accurate positioning for repetitive soldering operations. It adapts seamlessly to various types of PCBs up to 130 x 130 mm / 5 x 5 in, thanks to its numerous adjustable elements.

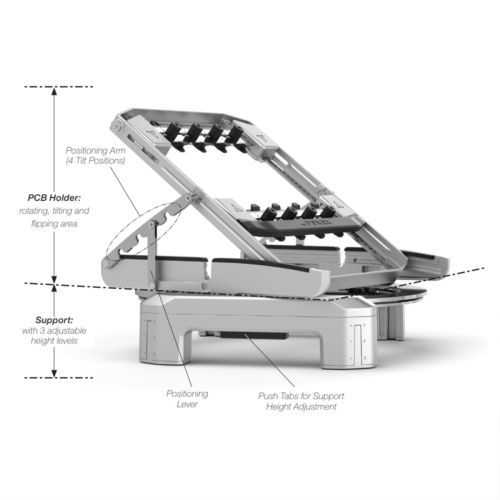

Features:
-
Horizontal-axis swivel: Allows the PCB holder to be turned 180º upside down with four angular positions available: 25º, 35º, 45º, and 55º.
-
Vertical-axis swivel: Enables the PCB to be positioned at any angle, accommodating both horizontal and inclined orientations.
-
Adjustable heights: Provides three distinct height settings for optimal positioning.
When used in combination with the PHSE Preheater, the built-in slots ensure precise alignment between the board and the preheater, guaranteeing consistent heating of the same area every time.
