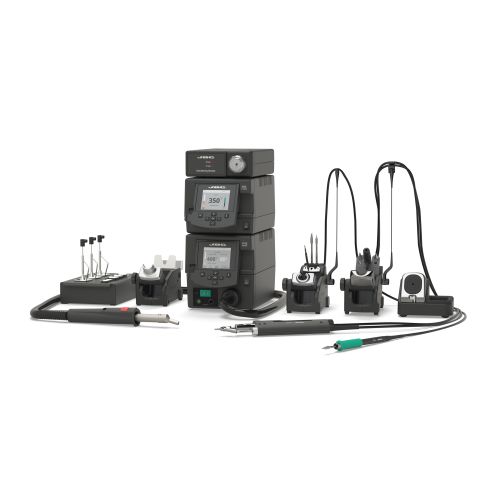

JBC RMSE-2QE Complete Rework Station with Electric Pump

The quickest and safest solution for soldering and rework, also using Hot Air. It consists of stackable modules and all the necessary accessories to make your job easier. The RMSE features all the Excellence range benefits. It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation modes help to extend the life of tips. The DDE manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the complete list of compatible tools. The MSE Electric Desoldering Module is indispensable for a complete desoldering process. The JTSE Precision Hot Air Station controls the rework task using temperature and airflow profiles. The RMSE works simultaneously with the DR560 Desoldering Iron, the T245 Handle and the JT-TA Heater Hose Set.


Qualities and Characteristics

  • JBC Most Efficient Soldering System
  • Intelligent Hibernation mode
  • Stackable modules
  • Up to 2 tools simultaneously
  • RMSE works simultaneously with the DR560 Desoldering Iron, the T245 Handle and the JT-TA Heater Hose Set.
  • Fully compatible with 10 different JBC tools
  • MSE Electric Desoldering Module
  • TSE Precision Hot Air Station
  • ESD Safe

Product Contains

  • 1 JTSE Hot Air Station 230V
  • 1 DDE 2 Tools Control Unit
  • 1MSE-A Electric Desoldering Module for DDE & DME
  • 1 T245-A General Purpose Handle (cartridge not included)
  • 1 DR560-A Desoldering Iron
  • 1 JT Heater Hose Sets
  • 1 CL8499 Manual Tip Cleaner
  • 1 Extractor Desk, composition:
  • 1 E2052 Extractor 20 x 20 mm,1 E2184 Extractor 24 x 24 mm,1 E2064 Extractor 20 x 26 mm,1 P2220 Protector 10 x 10 mm,1 P2235 Protector 12 x 17 mm,1 P4000 Protector 12.4 x 12.5 mm,1 P2230 Protector 15 x 15 mm, 1 P4010 Protector 17 x 17 mm,1 T2050 Tripod ø39 mm,1 T2250 Tripod ø85 mm
  • 1 JN2015 Nozzle for JT heater
  • 1 JN2012 Nozzle for JT heater
  • 1 JN2020 Nozzle for JT heater
  • 1 SCH-A Cartridge Holder
  • 1 AD-SE Stand for T210 & T245 Handles
  • 1 DR-SE Stand for DR560
  • 1 JT-SE Stand for JT heater
  • 1 T260-A Pick & Place
  • 1 PH218 Thermocouple Type K
  • 1 PH217 Kapton tape

Technical Attributes

Vacuum MSE: 75% / 570 mmHg / 22.4 inHg. JTSE: 30% / 228 mmHg / 9 inHg
Flow Rate MSE: 9 SLPM

Selectable Parameters

Selectable Temperature DDE: 90 to 450 ºC / 190 to 840 ºF. JTSE: 150 to 450 ºC / 300-840 ºF
Operating Modes JTSE:Heating / Profiles / Cooling
Air Flow Regulation JTSE: 5 to 50 SLPM

ESD/EOS

ESD Safe
Tip to ground resistance <2 ohms
Tip to ground voltage <2 mV RMS

Power Supply

Peak Power DDE: 150 W per tool - 23.5 V JTSE: 700W
Ambient operating temp. 10 - 50 ºC / 50 - 120 ºF

Connectivity

USB-B Rear:Software PC / Traceability
USB-A Front:Firmware update / Soldering Graphics management
Equipotential Bonding Optional connection to EPA
Robot RS-232 remote control or Smart Fume Extractor connection
Type K Thermocouple Can be used both for Control and Protection purposes.
Pedal Optional tool control
