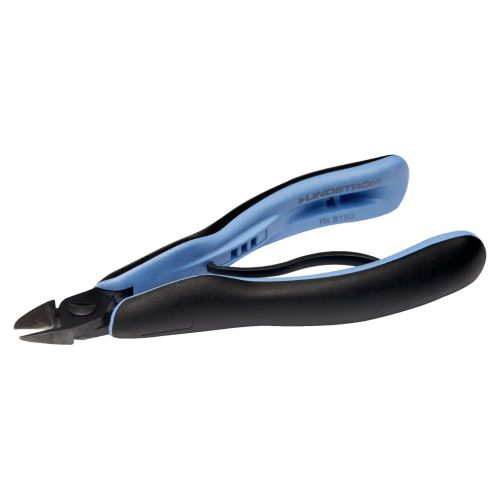

Lindstrom RX8142 ERGO™ Precision Diagonal Cutters with Oval Head

Lindstrom RX8142 ERGO™ Precision Diagonal Cutters with Oval Head

Qualities and Characteristics

• Precision oval head diagonal cutters developed according to the scientific ERGO™ process, Oval head
• ERGO™ handles with two-component combination, thermoplastic surface, for a comfortable grip, on tough polypropylene core for rigidity
• Micro-bevel, flush & ultra-cut
• The cutting capacity that is given is for copper wire
• Cutting capacity: 0.1 mm-0.8 mm to 0.4 mm-2 mm
• High performance alloyed steel
• Phosphate finish
• Numerically controlled machine grinding guarantees edge angle accuracy & contact increases the tool's reliability & consistency
• Precision induction-hardened edges 63-65 HRC
• Screw joint minimises friction & maximises alignment of cutting edges
• ESD safe handles in two-component synthetic material
• Bio spring limits the tension throughout the working cycle of the tool & can be adjusted to 3 different positions or removed
• Ideal for wire harness work & standard printed circuit board assembly

Drawing Measurements for RX8142

• A = 135.5mm / 5.33in
• B = 10.5mm / 0.41in
• C = 10mm / 0.41in
• D = 6mm / 0.24in
• F = 0.8mm / 0.03in
