Panasonic AM100 Modular Placement Machine
Panasonic AM100 Modular Placement Machine

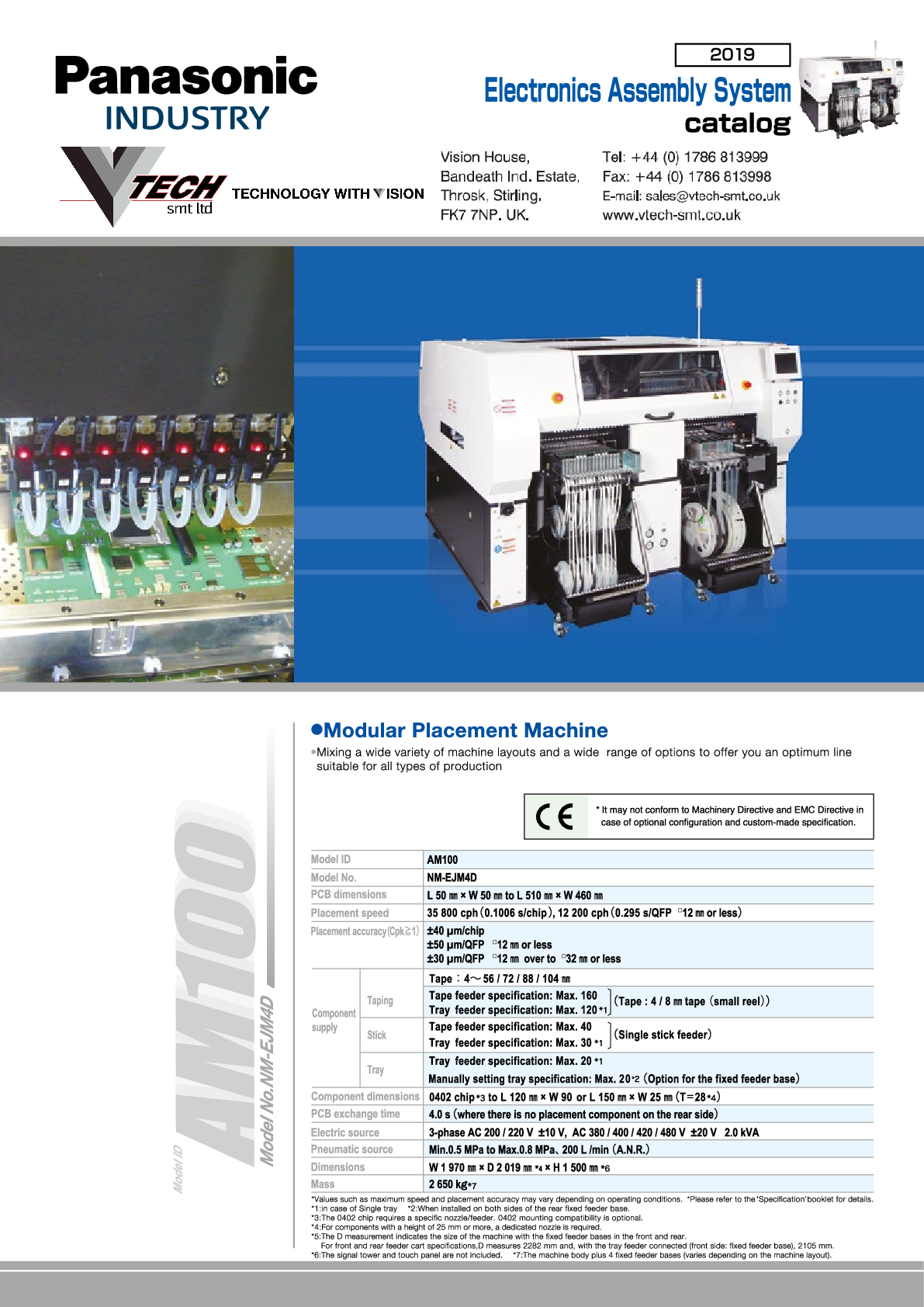

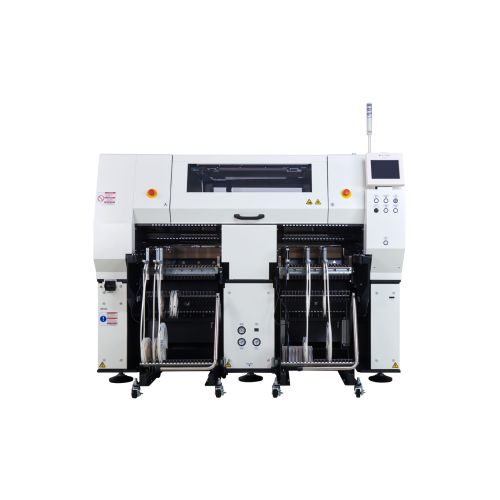

The AM100 meets the high standards of reliability, capacity and flexibility that customers look forward to in a cost-efficient, gradationally scalable, high-mix SMT solution. It only takes one machine to start off production and extra units and/or technologies can be easily integrated according to requirements.
The single-head (single beam) of Panasonic's AM100 modular placement machine is able to place an impressive component array including 0402 mm to 120 x 90 x 2 8mm, odd-shaped components, large connectors, as well as advanced packaging types.
Features
- The single solution AM100 provides high net productivity and versatility.
- Equipped with a 14-nozzle head and 160 feeders the AM100 can place an impressive component range.
- On top of the non-stop changeover allows you to prepare the next production process during running production.
- An off-line setup support station and a feeder set-up navigator option improves operating time and minimizes downtime.
General Attributes
| Model | AM 100 NM-EJM4D |
Technical Attributes
| PCB Dimensions (mm) | L 50 × W 50 to L 510 × W 460 |
| Placement Speed | 5 800 cph (0.1006 s/chip); 12 200 cph (0.295 s/QFP 12 mm or less) |
| Placement Accuracy (Cpk1) | ±40 µm/chip ±50 µm/QFP 12 mm or less ±30 µm/QFP 12 mm over to 32 mm or less |
| Component Supply Taping | Tape4 ~ 56 / 72 / 88 / 104 mm / Tape feeder specification : Max. 160 / Tray feeder specification : Max. 120 V ((Tape : 4 / 8 mm tape (small reel) |
| Component Supply Stick | Tape feeder specification : Max. 40 / Tray feeder specification : Max. 30 *1 (Single stick feeder) |
| Component Supply Tray | Tray feeder specification: Max. 20 / Manually setting tray specification: Max. 20 / (Option for the fixed feeder base) |
| Component Dimensions (mm) | 0402 chip to L 120 × W 90 or L 150 × W 25 (T=28) |
| PCB Exchange Time | 4.0 s (where there is no placement component on the rear side) |
Physical Attributes
| Dimensions mm | W 1970 × D 2019 × H 1500 |
| Weight kg | 2650 kg |
