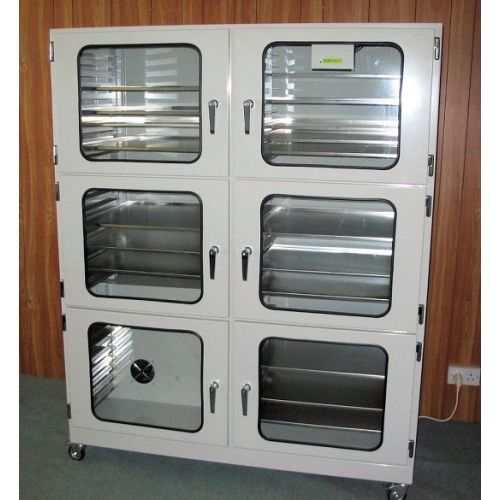

V Tech SMT AD606 6 Door Dry Storage Cabinet

V Tech SMT AD606 6 Door Dry Storage Cabinet

Qualities and Characteristics

• Closed-loop humidity-controlled drying and storage cabinets.
• “Active Desiccant” dehumidifier incorporating MTX – Flow Technology.
• Continually regenerated molecular sieve desiccant.
• Protect your valuable components from micro-cracking and delamination.
• Less than 5% RH guaranteed, normal hysteresis 1-3% RH.
• Closed-loop humidity control ensures a swift return to spec if the humidity rises.
• Normally less than 2 minutes to return to <5% RH after a door is opened!
• Not only dry storage but also rapid moisture removal from components.
• Exceeds the requirements of IPC/Jedec standard J-STD-033B, which details recommendations for handling, packing, shipping, and use of moisture/reflow sensitive surface mount devices.
• Less than 50 W average power consumption.
• Accuracy of humidity display = +/- 1% RH.
• Finish: Powder-coated steel cabinet and doors in RAL 7035 (light grey gloss) with optional static conductive powder coat.
• Stainless steel shelf holders with lightweight aluminum sliding removable shelves.
• Control system: High-quality humidity and temperature sensor probe. Closed-loop control of internal humidity level with upper and lower set points. Clear illuminated digital display of humidity and temperature. Our standard meter includes set points for humidity, temperature, and humidity alarm level.
• System accuracy = +/- 1% RH, +/- 0.6 C
• Status LEDs: Red/Green = humidity level, Orange = Drying Unit power on
• Earth bonding point fitted as standard for ESD standard EN 61340-5-1.
• Cabinet base: 2-door models and above are fitted with 4 x anti-static castors as standard. Optional extra on 1 door cabinet.
